INSTALATION PLACED ON THE EXISTING FLOORING

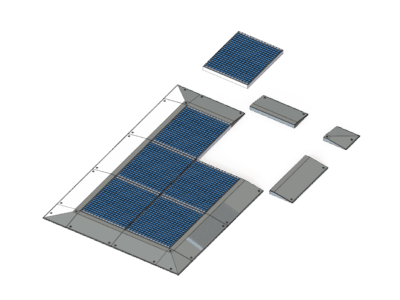

INSTALLATION ON EXISTING FLOORING

With this form of installation, the grates are placed directly on the ground. For the convenience of passage, we install ramps using assembly anchors. Long ramps are dedicated to vehicular traffic, and short ramps – for pedestrians, or there is not enough space to install long ramps.

The product is protected by patent (PL 242873 B1)

Technical data

The assembly kit consists of:

Ramps 1000 x 793 mm, 1000 x 600 mm or 300 x 793 mm, 300 x 600mm,
Corner 1000 x 1000 mm or 300 x 300 mm,
Lateral safety angle 40/50 mm,
Distance frame to protect the floor,
Mounting anchors.

Schematics

Available accessories

Assembly of the 50 system with a 1000 mm ramp

Assembly of the 50 system with a 300 mm ramp

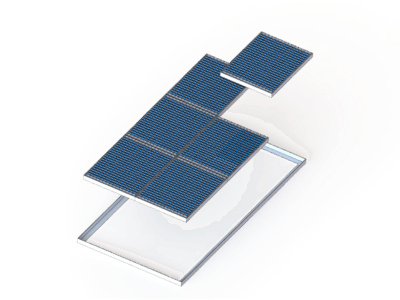

ASSEMBLY IN A READY GROOVE

The groove for the system is usually made at the stage of floor installation. Otherwise, the groove must be milled. Again, we recommend entrusting this work to specialized companies.

In the case of a recessed system, we can use an additional support system. As a result, we increase the space for collecting dirt several times. However, we must remember that by using supports, we reduce the load capacity of the gratings.

The product is protected by patent (PL 242873 B1)
